Spectrum Slimline Electric Fireplace
Collection: Spectrum Slimline

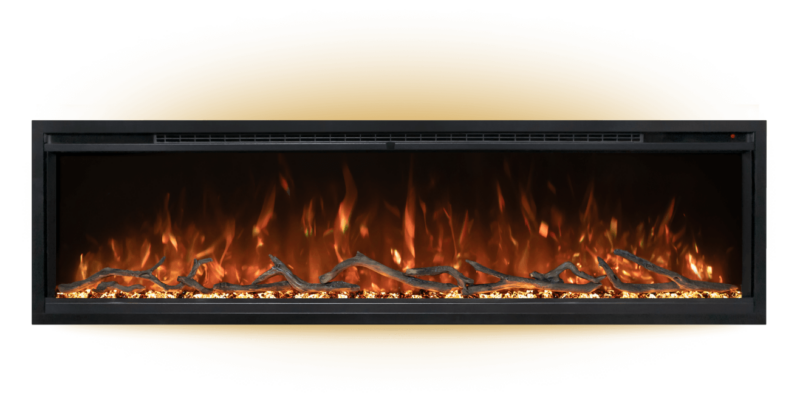

The Spectrum Slimline removes the traditional black glass surround, finishing flush with just a sleek 5/8″ trim to maximise the viewing area. Hardwood or tile finishes right up to the fireplace opening. Powered by Hybrid-FX™ flame technology with 10 colour combinations across flame and ember bed, it installs into a standard 2×4 wall or mounts directly to the wall. Available in 50″, 60″, 74″ and 100″ sizes. 240V plug-in with hardwire option. Thermostatic heat control and remote included.
Finish
Technical Specifications
Flame Technology: Hybrid-FX™
Viewing Height: 12″ (305mm)
Unit Depth: 4″ (102mm)
Heater: 5,000 BTU, Thermostatic Controls
Power: 240V Plug (standard outlet), Hardwire Ready. Dedicated 10A breaker required.
Flame Colours: 10 combinations (Flame + Ember Bed)
Ember Bed: Glacier Glass
Media: Clear Acrylic Stone + Canyon Driftwood Log Set
Controls: Remote Control, Manual Touch Screen
Features: Can be installed beneath a TV, DIY installation, Variable heat with thermostat, Sleek 5/8″ trim
Install Types: Built-In Clean Face (2×4 Wall), Wall Mount, Fully Recessed
Sizes: 50″ | 60″ | 74″ | 100″
Viewing Dimensions (W x H):
50″ — 46″ x 12″ (1168 x 305mm)
60″ — 56″ x 12″ (1418 x 305mm)
74″ — 70″ x 12″ (1772 x 305mm)
100″ — 96″ x 12″ (2435 x 305mm)
Recessed Opening Dimensions:
50″ — 48-7/8″ W x 16-1/4″ H x 4″ min. D
60″ — 58-7/8″ W x 16-1/4″ H x 4″ min. D
74″ — 72-7/8″ W x 16-1/4″ H x 4″ min. D
100″ — 98-7/8″ W x 16-1/4″ H x 4″ min. D
Warranty
Fitting Instructions
Install types: Fully Recessed (2×4 wall), Wall Mount.
General requirements: A dedicated 10 Amp (or higher) breaker is required. Minimum 36″ (914mm) from combustible materials. Consult your local builder before wall installation.
Recessed Installation: Create rough-in frame with electrical. Remove front glass. Fix two metal brackets (1 per side) through wood studs with 4 supplied screws. Insert appliance into rough-in frame and secure with 4 screws into side slots. Reinstall brackets.
Wall Mount: Remove wall bracket from back of unit. Mount bracket to wall with hooks facing upward and level — secure to wall studs where possible. If studs unavailable, use supplied plastic anchors. Two people required to lift and hang unit. Attach L-bracket at base for stability. Install side skirt panels.
Recessed Opening Dimensions (W x H x D min.):
SPS-50B: 1242 x 413 x 102mm | SPS-60B: 1496 x 413 x 102mm
SPS-74B: 1851 x 413 x 102mm | SPS-100B: 2512 x 413 x 102mm
Disclaimer: Always refer to the full product manual before installing.
Rating Information
Modern Flames electric fireplaces operate without combustion — no gas, no wood, no flue required. They run on standard 240V power and are safe to install using standard building materials without fireproof linings. PTC ceramic and coil heating components operate at a maximum of 2kW per hour. RGB LED lighting produces zero heat, enabling year-round use with or without the heater active. Modern Flames products are distributed in Australia by Modern Flames Australia, 18 Blue Rock Drive, Luscombe QLD 4207. Phone: (07) 5630 6840.
Use, maintenance and care
Modern Flames electric fireplaces require minimal maintenance.
General care: Keep the glass clean with a soft, dry cloth. Do not use abrasive cleaners or harsh chemicals on the glass or surround. Ensure ventilation slots are kept clear and unobstructed at all times.
Media: Log sets and ember bed media can be repositioned as needed. Handle with care to avoid breakage. Replace media components only with manufacturer-approved parts.
Electrical: Do not attempt to service internal electrical components. Contact Modern Flames Australia for warranty or repair support. Always refer to the product manual before servicing.
